Air Grip Union
Inflatable air-grip union for tool-free low-pressure mud-tank and hose-to-pipe connections — not for HP fracturing.
Quick answer
Air-grip union for mud tanks: inflate to seal, deflate to release — LP large-bore only, not for fracturing.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN

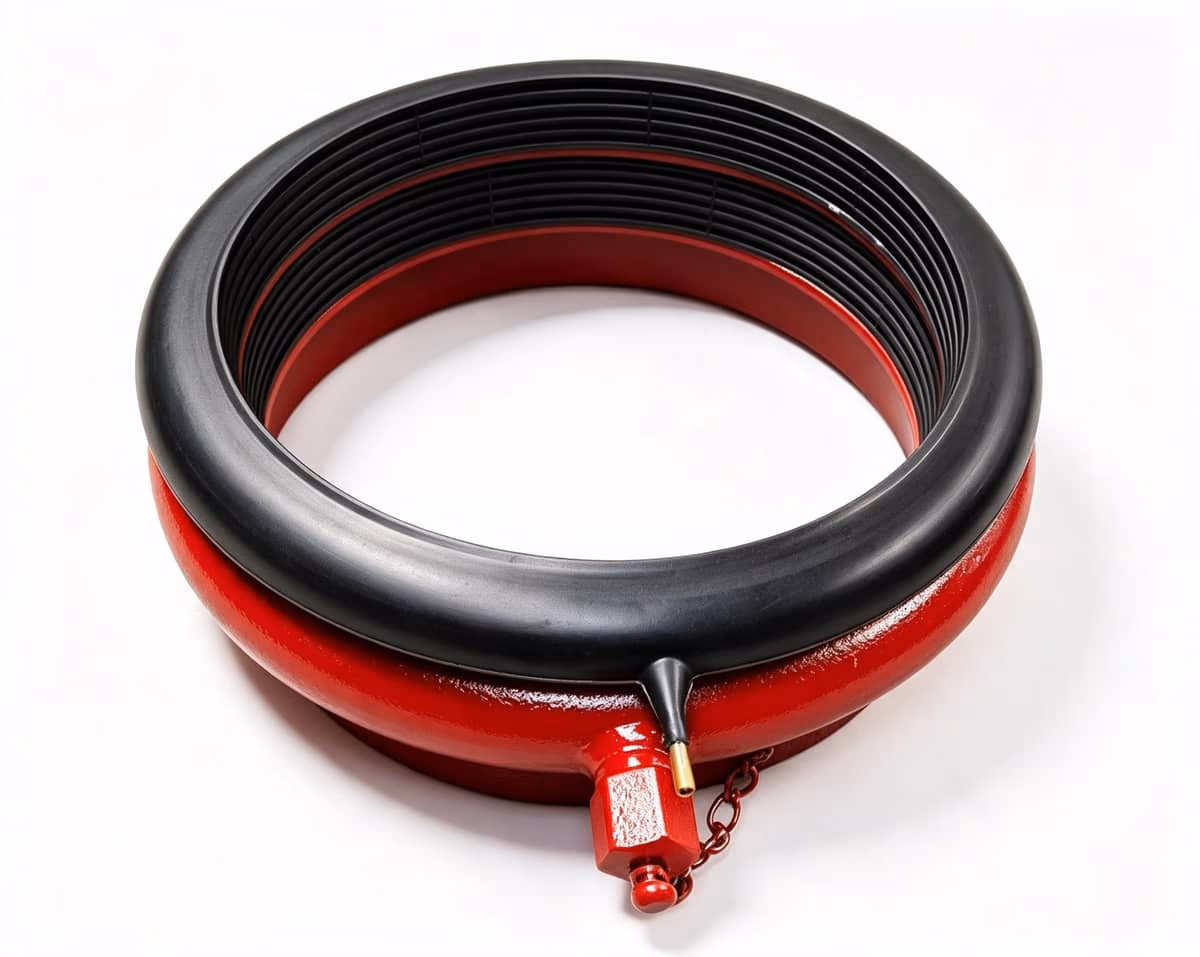

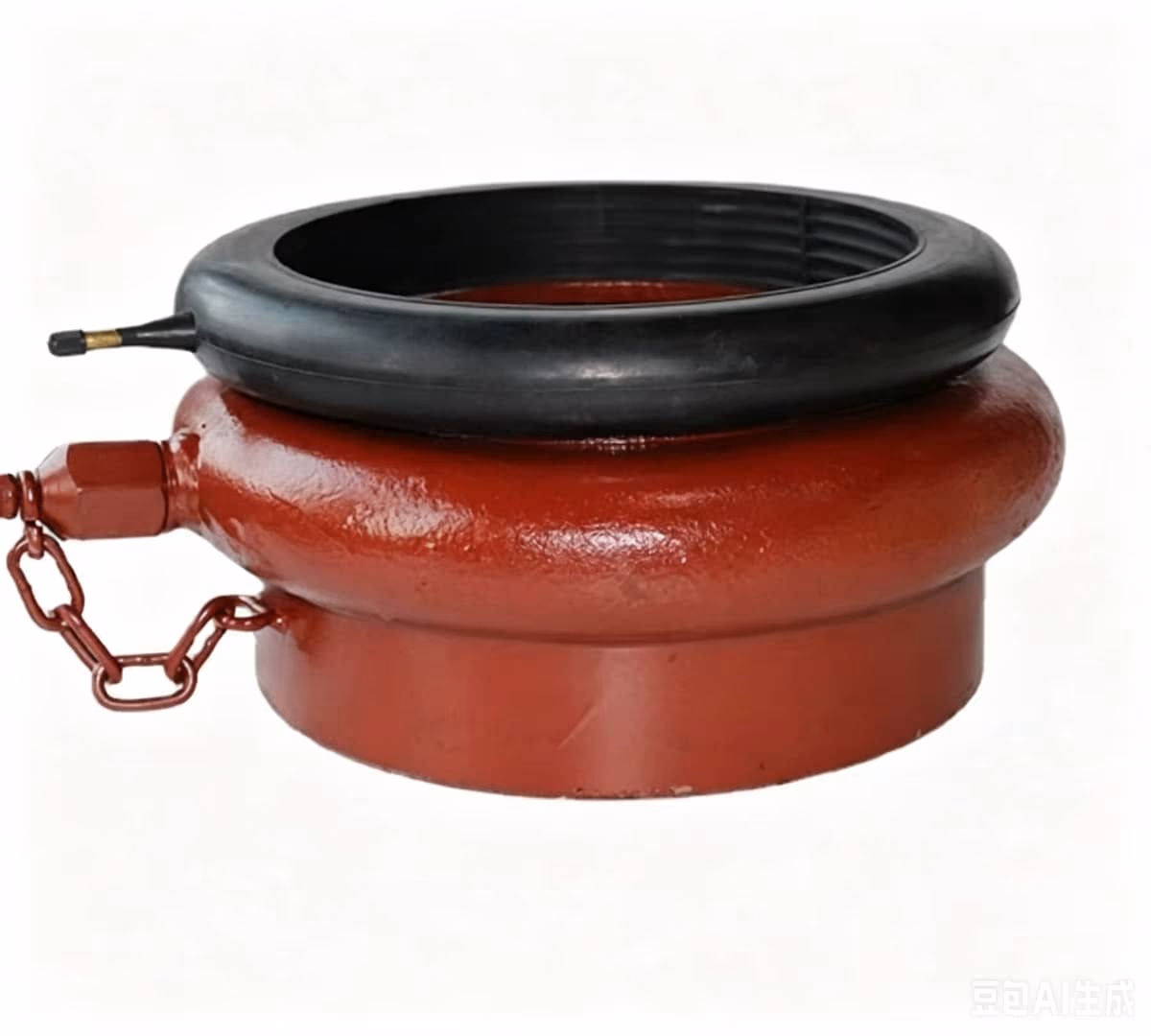

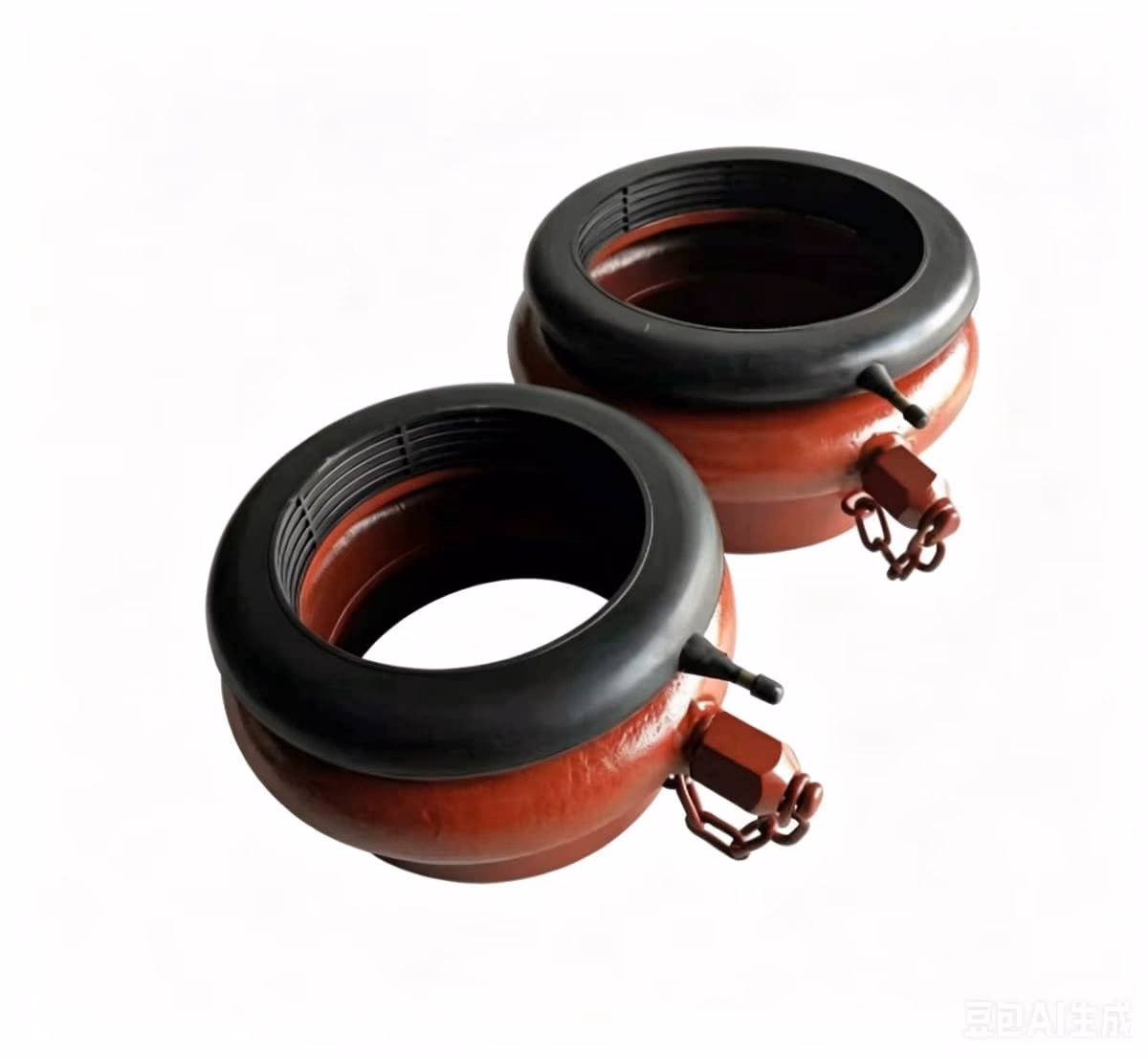

Air-grip (air-operated) union seals by inflating a rubber air bladder against the inserted pipe. Lock by inflation and release by deflation — no hammering or bolts. Used on mud tanks, cementing units and LP mud lines.
Steel shell welds to tank or pipe; replaceable natural rubber or NBR bladder. Pipeline medium max ~0.4 MPa; inflation 0.4–0.8 MPa; sizes 4"–20". Allows moderate misalignment.
Low-pressure large-bore service only. Protect rubber from sharp debris. Operating temperature typically −45°C to +90°C.
Specifications
| Max Medium Pressure | 0.4 MPa (4 bar) |
|---|---|
| Inflation Pressure | 0.4–0.8 MPa |
| Nominal Sizes | 4", 6", 8", 10", 12", 14", 16", 18", 20" |
| Shell Material | Cast / forged steel |
| Air Bladder | Natural rubber / NBR |
| Temperature | −45°C ~ +90°C |
Features
- Tool-free inflate/deflate make-up
- Tolerates pipeline misalignment
- Replaceable air bladder — low maintenance
- Fast hose-to-steel pipe connection
- LP only — not for HP frac lines
