Choke Valve
Forged 4130 choke valve with tungsten-carbide trim for precise flow and back-pressure control under sand-laden HP service.
Quick answer
API 6A forged choke valve with WC trim for fracturing and wellhead flow/back-pressure control.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN
Choke valve is the core control valve for fracturing, acidizing and wellhead blowdown. One-piece forged 4130 body; continuous handwheel adjustment of spool opening regulates flow rate and pressure under high-pressure, sand-laden erosion.

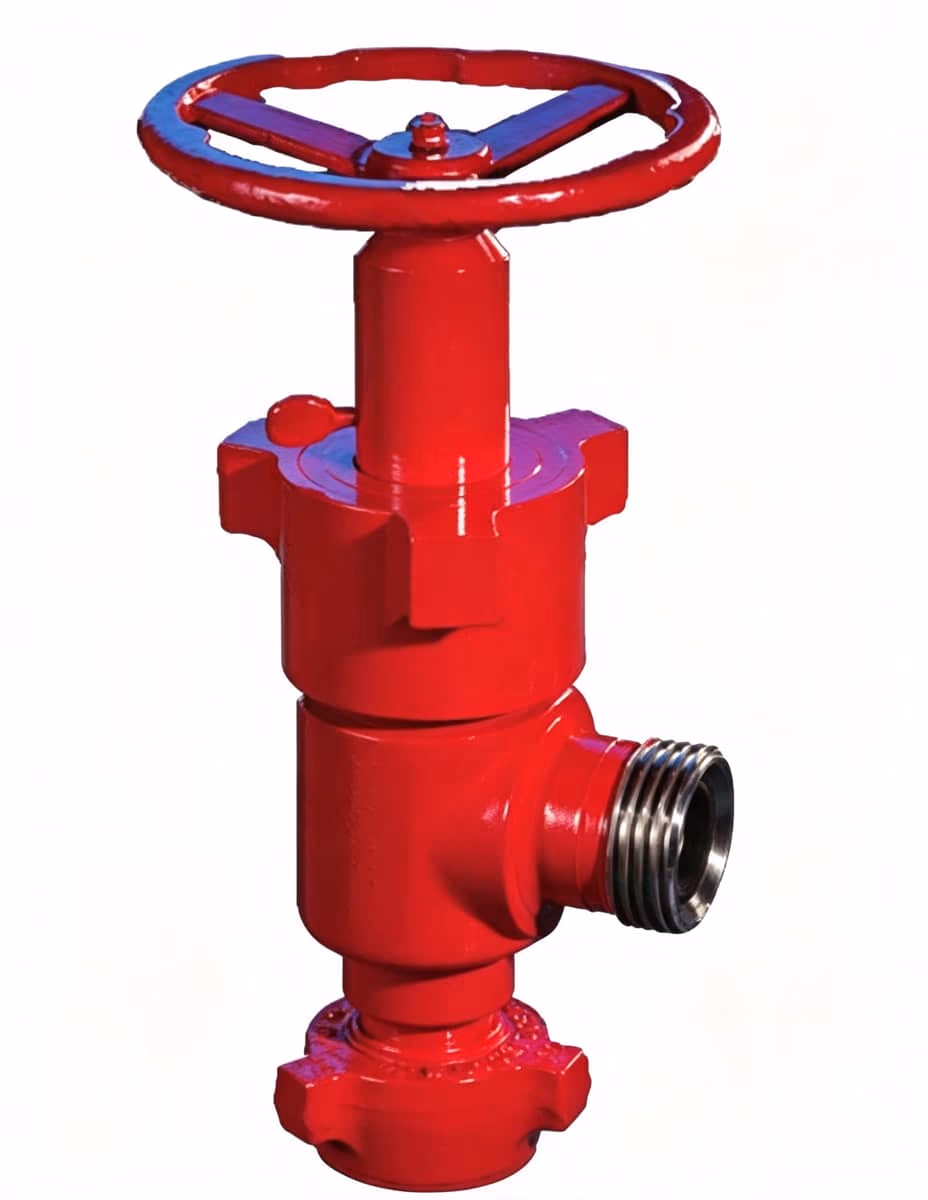

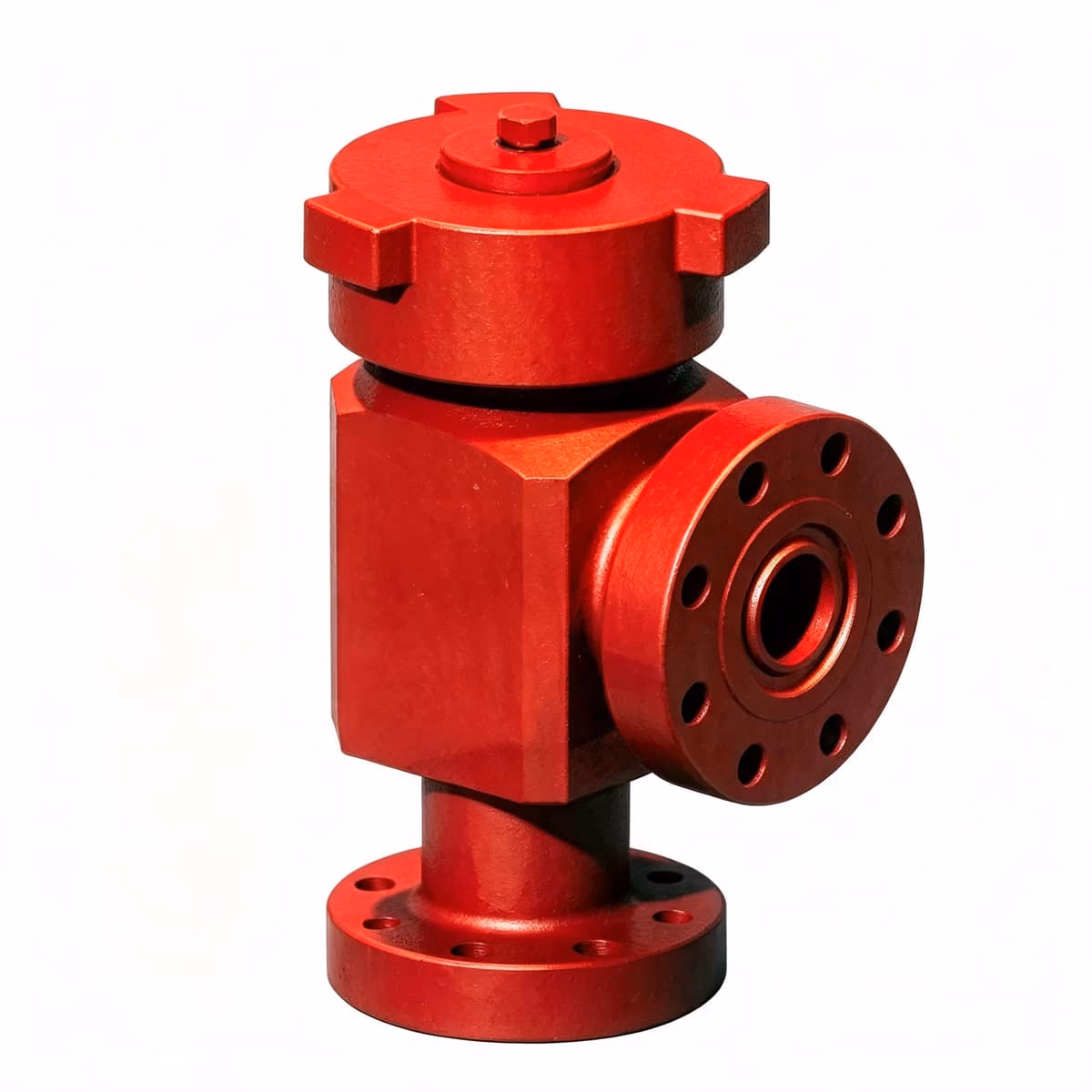

Wing (hammer-union) or RTJ flanged ends; tungsten-carbide trim for long life. Bores 2"–4"; API 6A; optional NACE MR0175. Often assembled with plug valves, straight pipes and swivel elbows into complete HP manifolds.
Hydrostatically tested before delivery. Union type for quick install; flanged type for long-term fixed wellheads.
Specifications
| Body Material | 4130 alloy steel, one-piece forged |
|---|---|
| Trim | Tungsten carbide, erosion-resistant |
| End Connection | FIG wing union / RTJ flange |
| Standard | API 6A; NACE MR0175 optional |
| Nominal Bore | 2", 3", 4" |
| Service Medium | Fracturing fluid, sand-bearing fluid, crude oil, mud, gas |
Features
- Carbide trim resists sand erosion
- Continuously adjustable handwheel control
- Forged body for alternating HP impact
- Union or flange end styles
- NACE sour-service option
