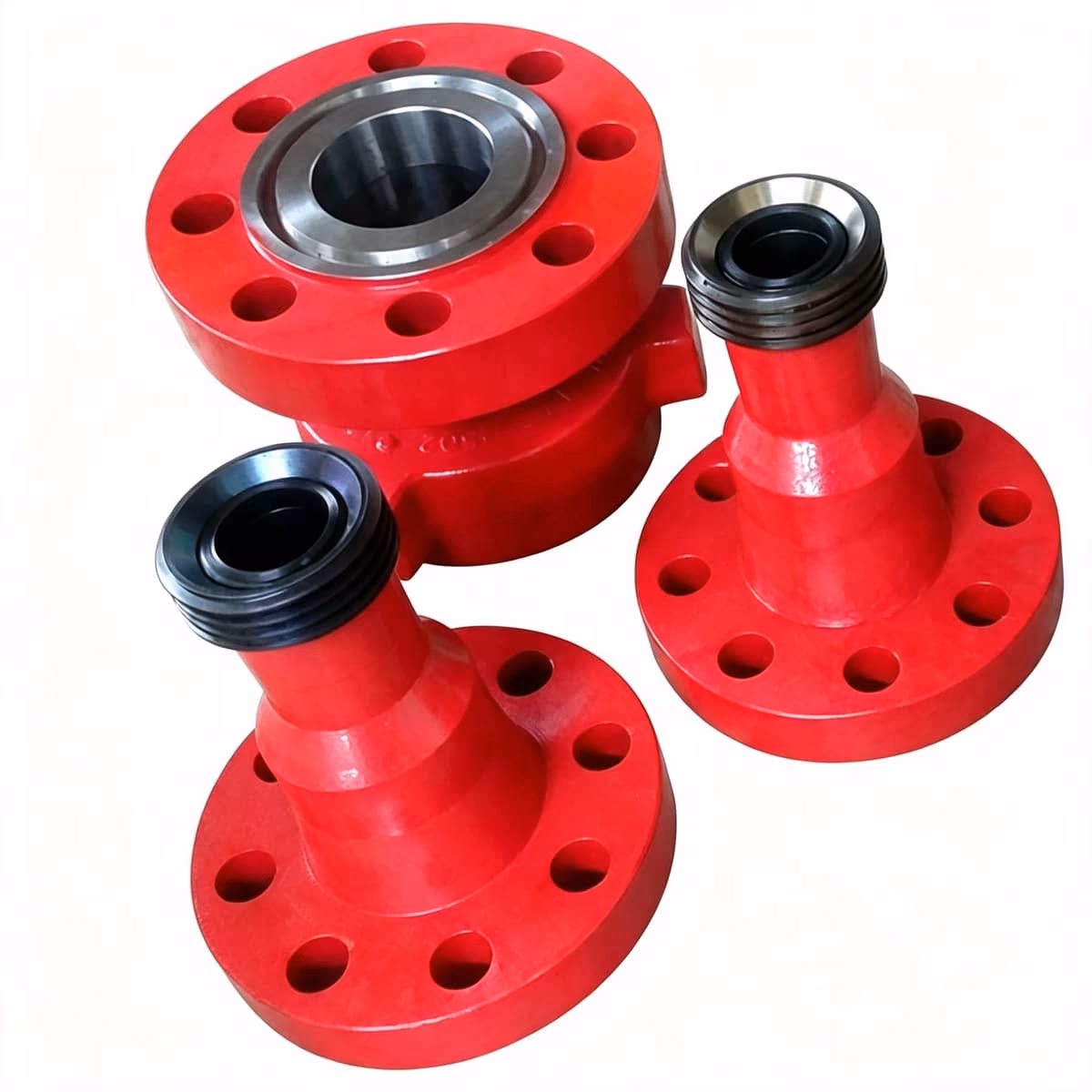

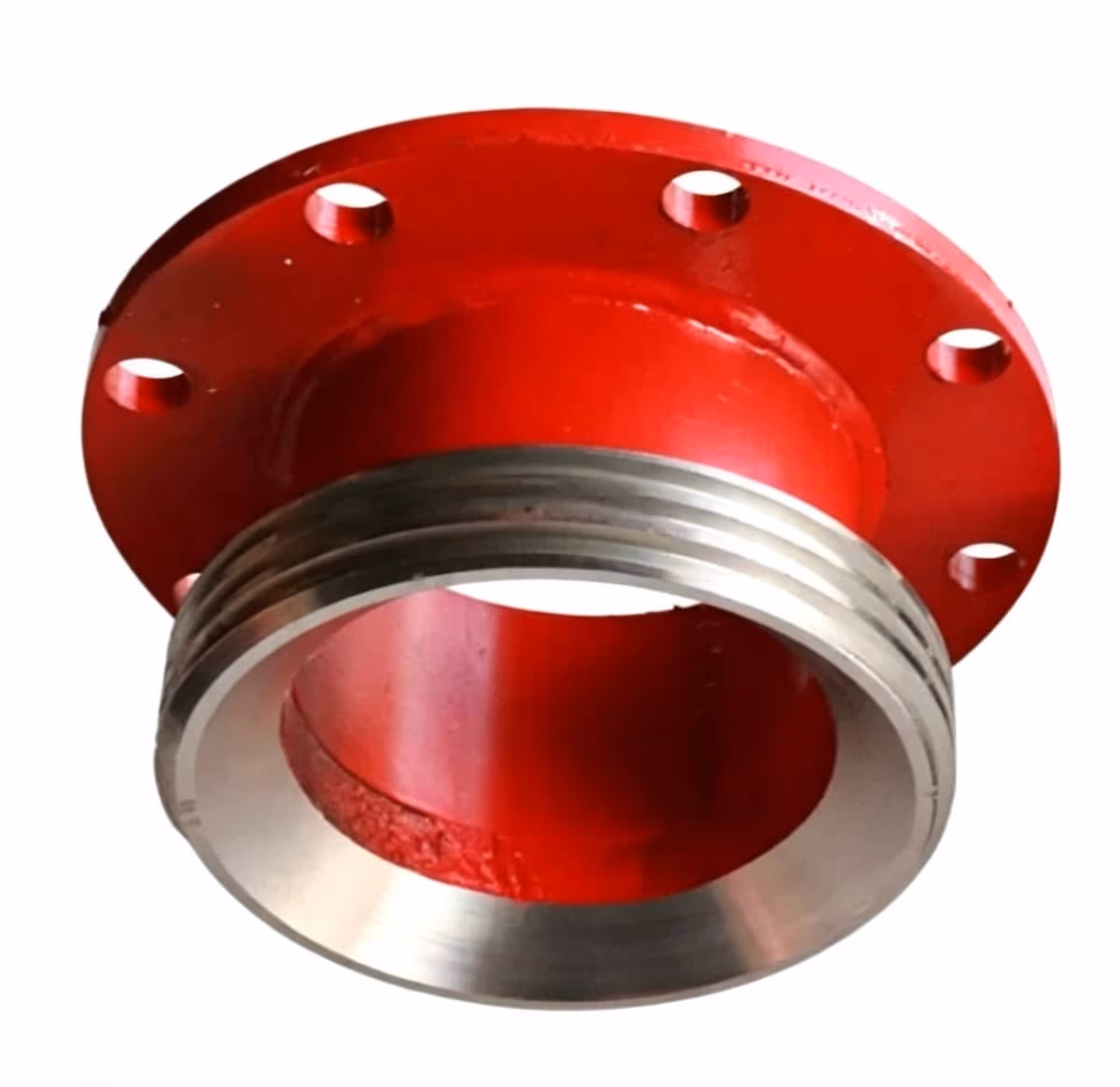

Flange Union Crossover
Forged adapter spool with API flange on one end and hammer union on the other for fast flange-to-union manifold tie-in.
Quick answer
API 6A flange-to-hammer-union crossover spool in forged 4130 — straight or reducing, 3–20k PSI.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN
Flange-union crossover (adapter sub) transitions API standard flanges to FIG hammer unions so flange piping can connect quickly to hammer-union HP manifolds without field pipe modification.
Fully forged and quenched-tempered 4130 for pressure and impact resistance. Straight or reducing bores; sour-service optional. Typical flanges 2-1/16", 2-1/8", 3-1/8" and more; unions FIG1002/1502/2002; pressure 3,000–20,000 PSI.
Widely used at wellheads connecting fracturing or choke manifolds and on mixed equipment sites.
Specifications
| Material | 4130 alloy steel, fully forged |
|---|---|
| Standard | API 6A; NACE MR0175 optional |
| Working Pressure | 3,000–20,000 PSI |
| Flange Sizes | 2-1/16", 2-1/8", 3-1/8", etc. |
| Union Sizes | FIG1002 / FIG1502 / FIG2002 |
| Media | Crude oil, fracturing fluid, mud, water |
| Application | Fracturing, cementing, wellhead, choke & rig-floor manifolds |
Features
- One-piece forged 4130, heat treated
- Direct flange ↔ hammer-union conversion
- Precision-machined metal sealing faces
- Straight and reducing customs
- NACE sour-service option
