Integral Tees
Forged 4130 integral hammer-union tees for weld-free branching on fracturing, cementing and well-testing manifolds.
Quick answer
Forged 4130 integral hammer-union tees FIG1002–2002 for weld-free HP manifold branching.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN

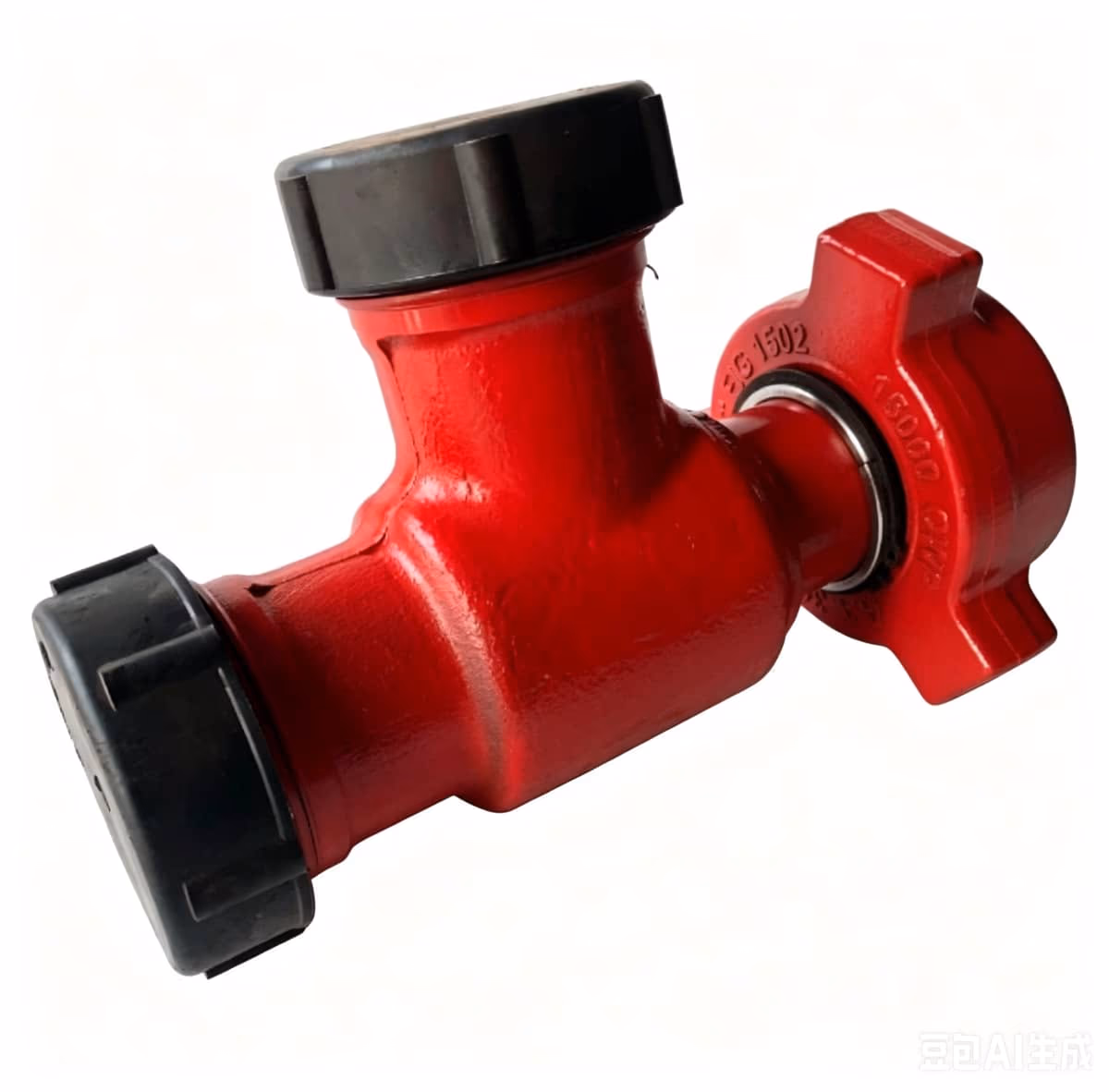

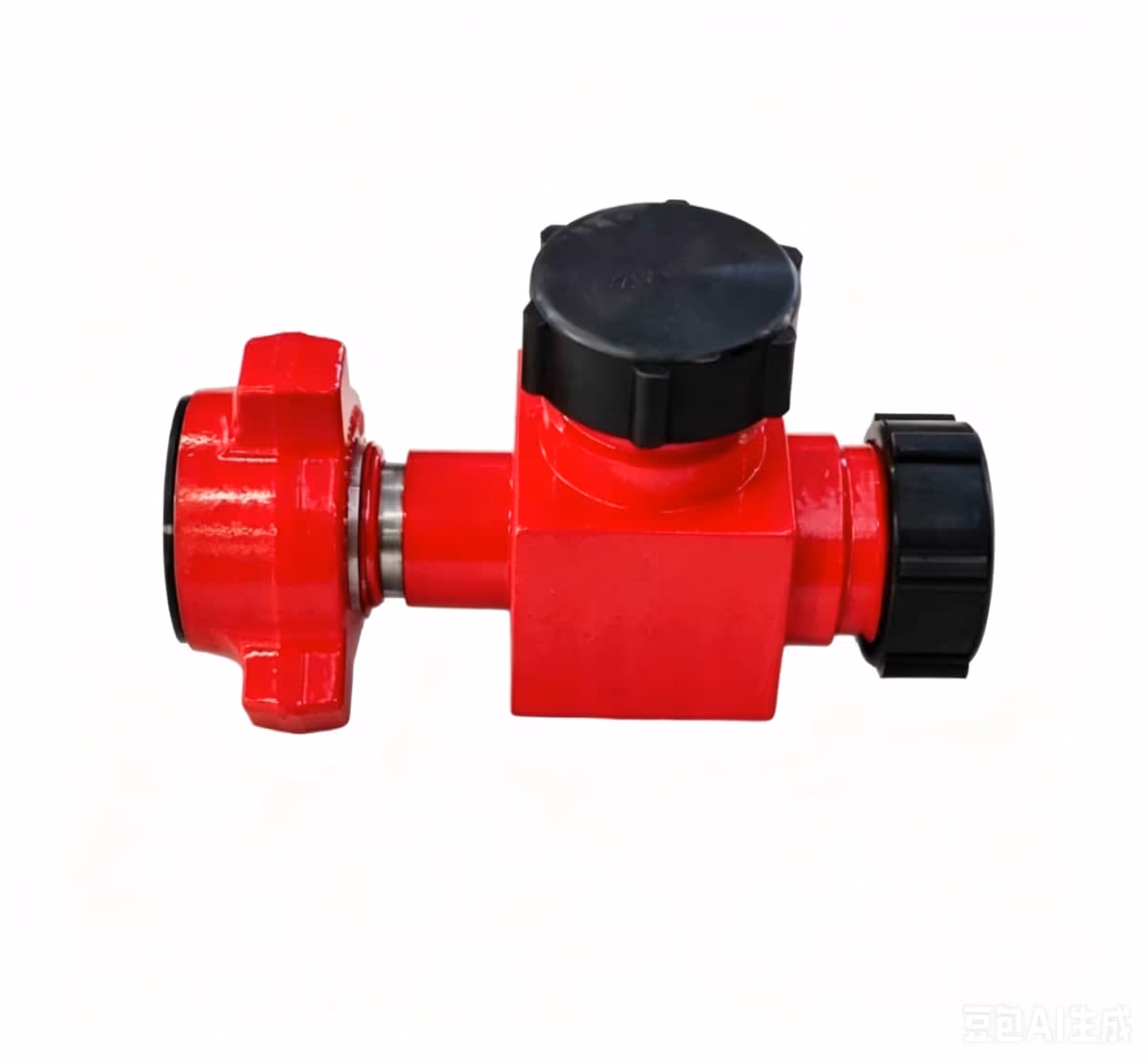

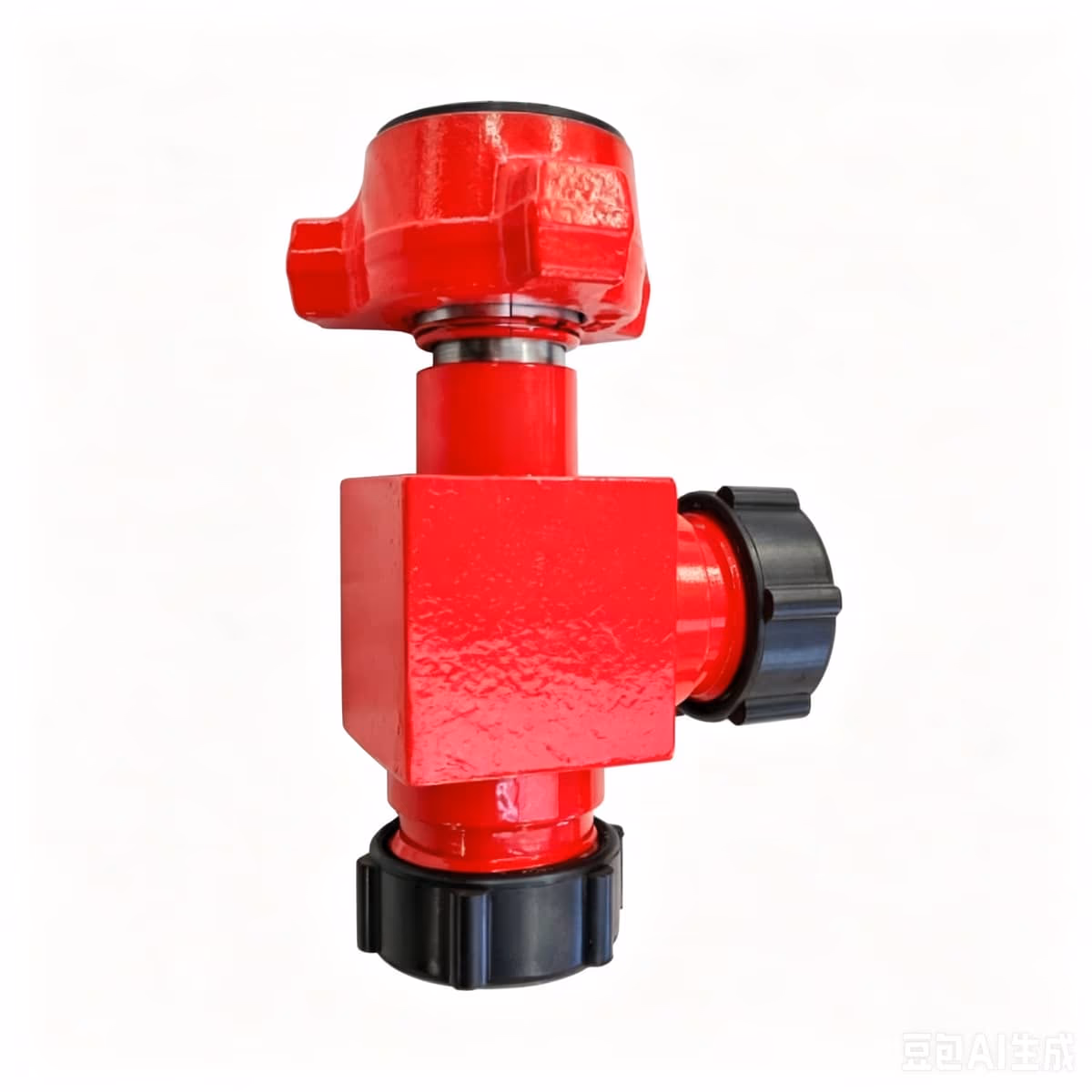

Integral (hammer-union) tee is a core branching fitting with FIG high-pressure unions integrated on the ports. Weld-free quick assembly for dividing and combining high-pressure mud and fracturing fluid.
Forged 4130 body; FIG1002/1502/2002; NBR/FKM seals; phosphating with black or red paint. Pressure rating matches the FIG specification. Multiple male/female port combinations fit varied manifold layouts.
Manufactured to API 6A with stable pressure resistance and high safety margin for harsh oilfield service.
Specifications
| FIG Size | FIG1002 / FIG1502 / FIG2002 |
|---|---|
| Body Material | 4130 alloy steel, forged |
| Seal | NBR / FKM |
| Standard | API 6A |
| Surface Treatment | Phosphating, black/red paint |
| Service Medium | Fracturing fluid, mud, crude oil, HP water |
Features
- One-piece forged strength and erosion resistance
- Weld-free FIG make-up for fast maintenance

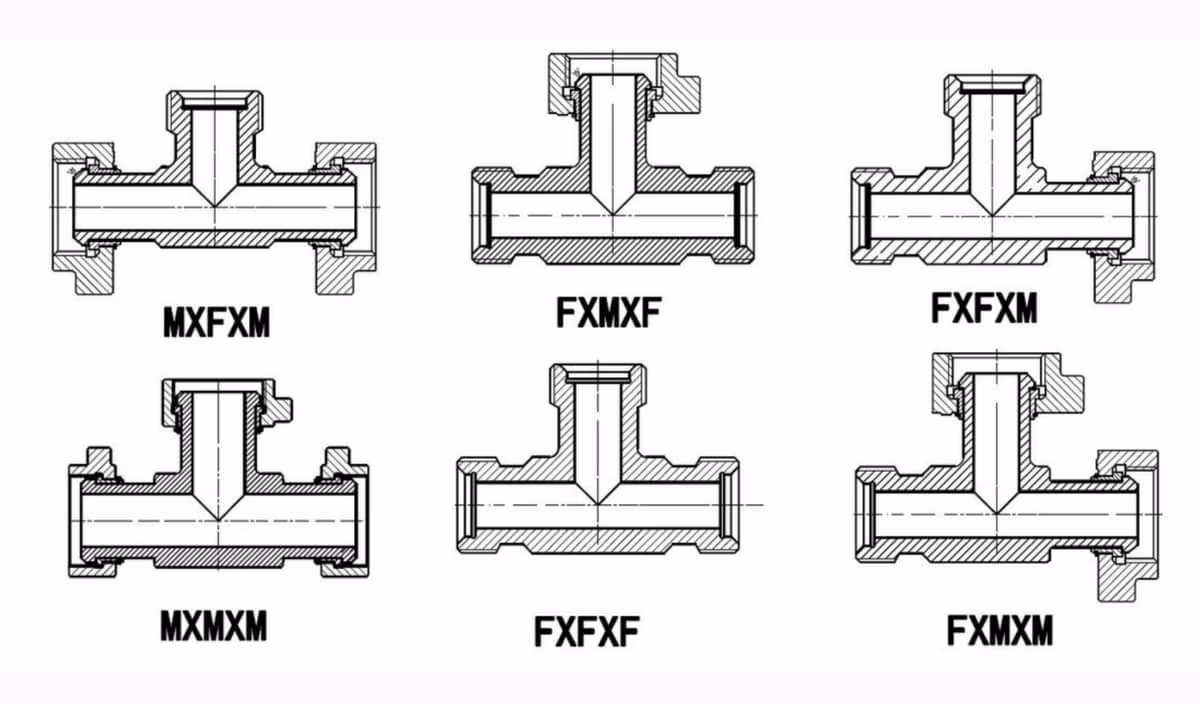

- Multiple M/F port combinations
- API 6A pressure integrity
- For fracturing, cementing and well-testing manifolds
