Loop Manifold

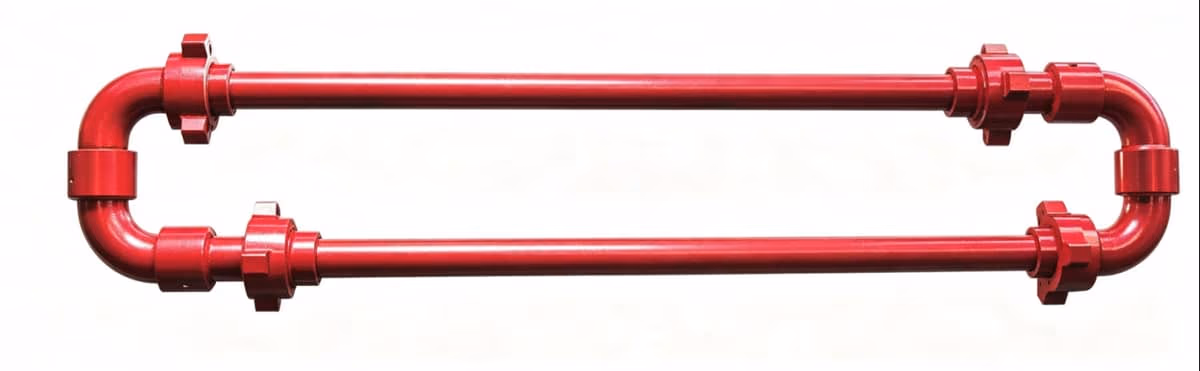

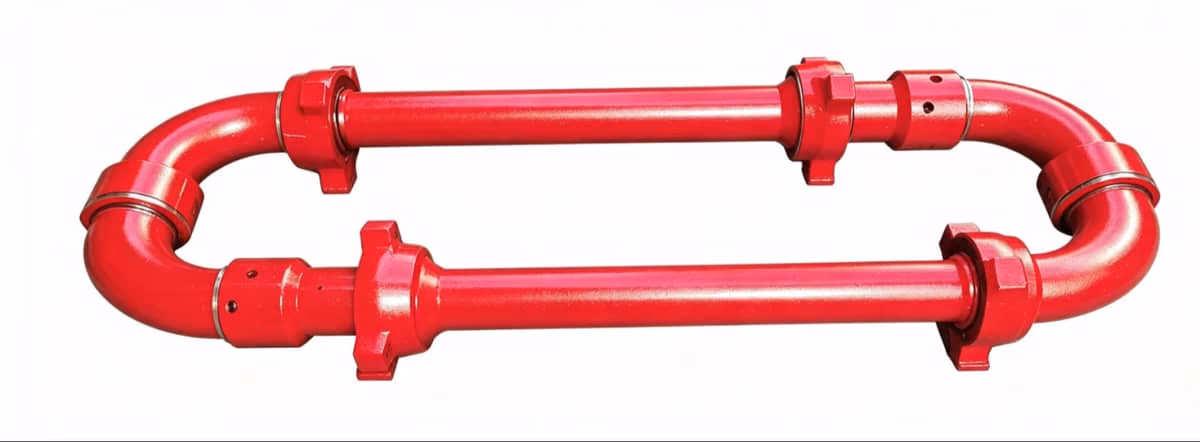

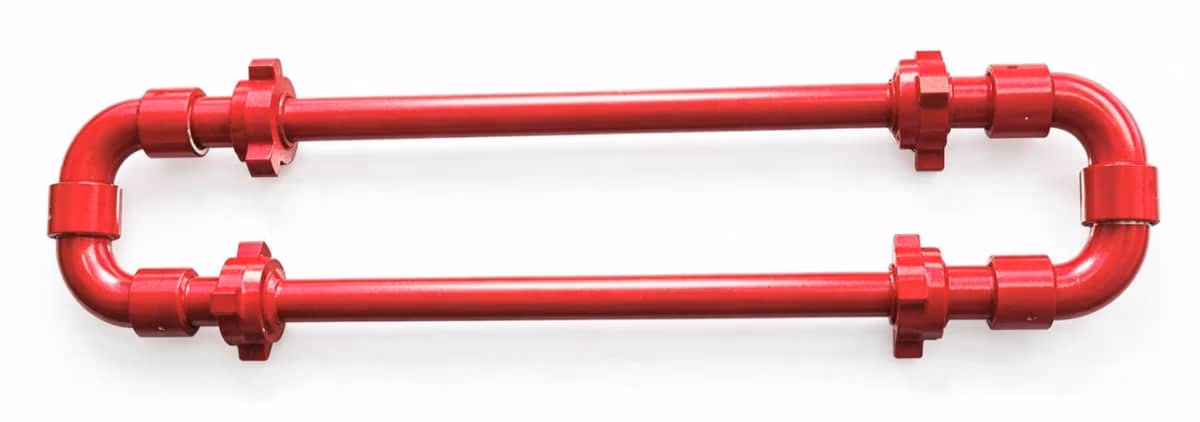

Closed-loop high-pressure manifold assembled from forged pup joints, long-radius swivel elbows and FIG unions for fracturing fluid transfer.
Quick answer
API 6A forged loop manifold with long-radius swivels for fracturing truck-to-wellhead transfer — 5–20k PSI.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN
Loop manifold (loop swivel manifold) is a closed high-pressure assembly of straight pipes, long-radius swivel elbows and FIG hammer unions. Forged 4130 construction absorbs vibration, thermal expansion and displacement during fracturing, cementing and well testing.
Long-radius loops are preferred for low pressure loss and erosion resistance; short-radius for compact cementing layouts; swivel-integrated designs reduce leak points. Ratings 5,000–20,000 PSI; bores 2"–4"; FIG1002/1502/2002 with Type 10 or Type 50 elbows.
Stackable for transport, highly interchangeable with global oilfield equipment. Optional NACE sour service; 100% hydrostatic tested. Commonly matched with plug and choke valves.
Specifications
| Body Material | 4130 alloy steel, one-piece forged |
|---|---|
| End Connection | FIG hammer union |
| Standard | API 6A; NACE MR0175 optional |
| Nominal Bore | 2", 3", 4" |
| Pressure Rating | 5,000 / 10,000 / 15,000 / 20,000 PSI |
| Union / Elbow | FIG1002 / 1502 / 2002; Type 10 / Type 50 swivels |
| Service Medium | Fracturing fluid, sand-laden fluid, mud, cement slurry |
Features
- Closed loop absorbs vibration and pulse stress
- Swivel elbows ease site alignment
- 4130 forged — sand-erosion resistant
- Fast FIG make-up, stackable for logistics
- NACE option; 100% hydrostatic test
