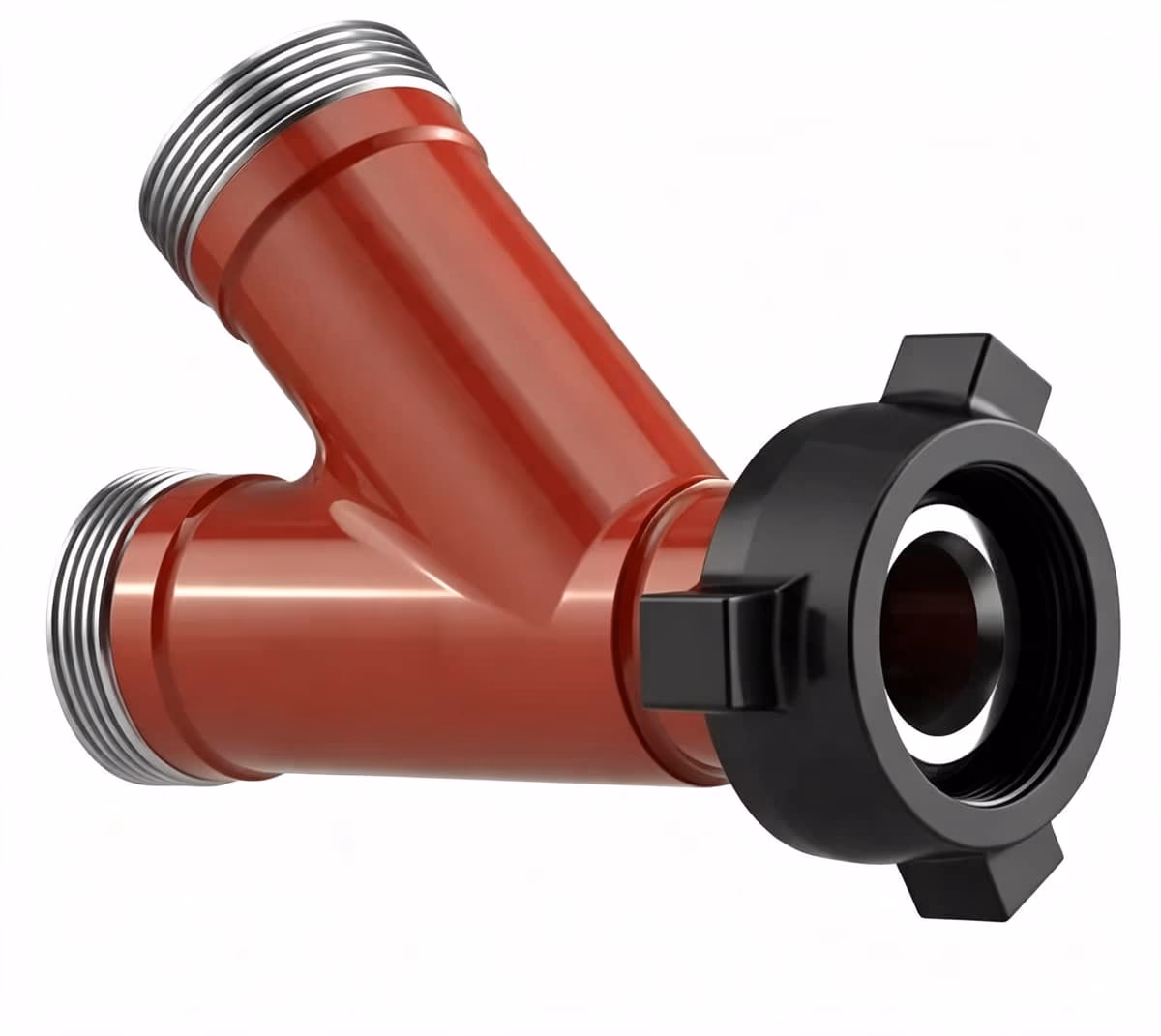

Manifold Tee
Forged 4130 high-pressure manifold tee for converging fracturing truck output or multi-way splitting — FIG or flange ends.
Quick answer
Forged 4130 manifold tee for fracturing converging/splitting — FIG or RTJ ends, API 6A, 5–20k PSI.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN
Manifold tee (high-pressure tee) is a core splitting/converging component in oilfield HP manifolds. One-piece forged 4130 body gathers high-pressure fluid from multiple fracturing trucks to the wellhead, or divides one stream into multiple outlets.

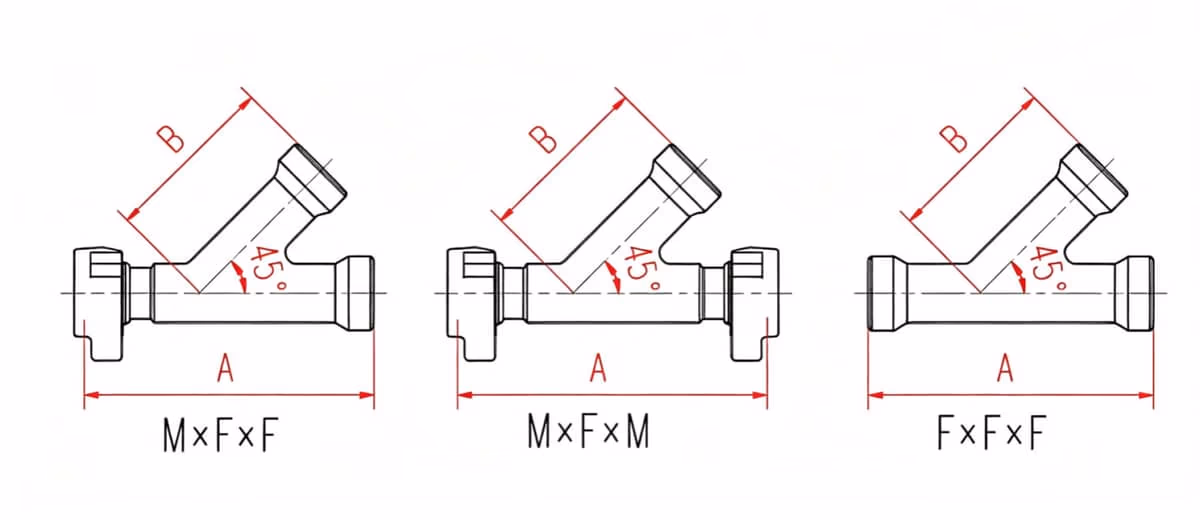

End styles: all-FIG hammer union, RTJ flange, or mixed ends. Equal-bore or reducing structures; pressure ratings 5,000–20,000 PSI; FIG1002/1502/2002. API 6A with optional NACE MR0175.
Streamlined bore reduces vortex and sand erosion. Hydrostatically tested; interchangeable with standard international manifold parts.
Specifications
| Body Material | 4130 alloy steel, one-piece forged |
|---|---|
| End Connection | FIG hammer union / RTJ flange |
| Standard | API 6A; NACE MR0175 optional |
| Nominal Bore | 2", 3", 4" |
| Pressure Rating | 5,000 / 10,000 / 15,000 / 20,000 PSI |
| Union Sizes | FIG1002 / FIG1502 / FIG2002 |
| Seal | NBR / FKM |
Features
- Streamlined forged bore resists sand erosion
- Fast FIG make-up or rigid flanged sealing
- Equal-bore and reducing layouts
- High interchangeability with global manifold parts
- 100% hydrostatic test before shipment
