Nylon Hammer Union
Lightweight glass-fiber PA66 nylon hammer union for low-pressure return water, mud circulation and irrigation — not for HP fracturing.
Quick answer
PA66 nylon hammer union ≤1.6 MPa for LP mud/water lines — lightweight, rust-free; not for fracturing.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN

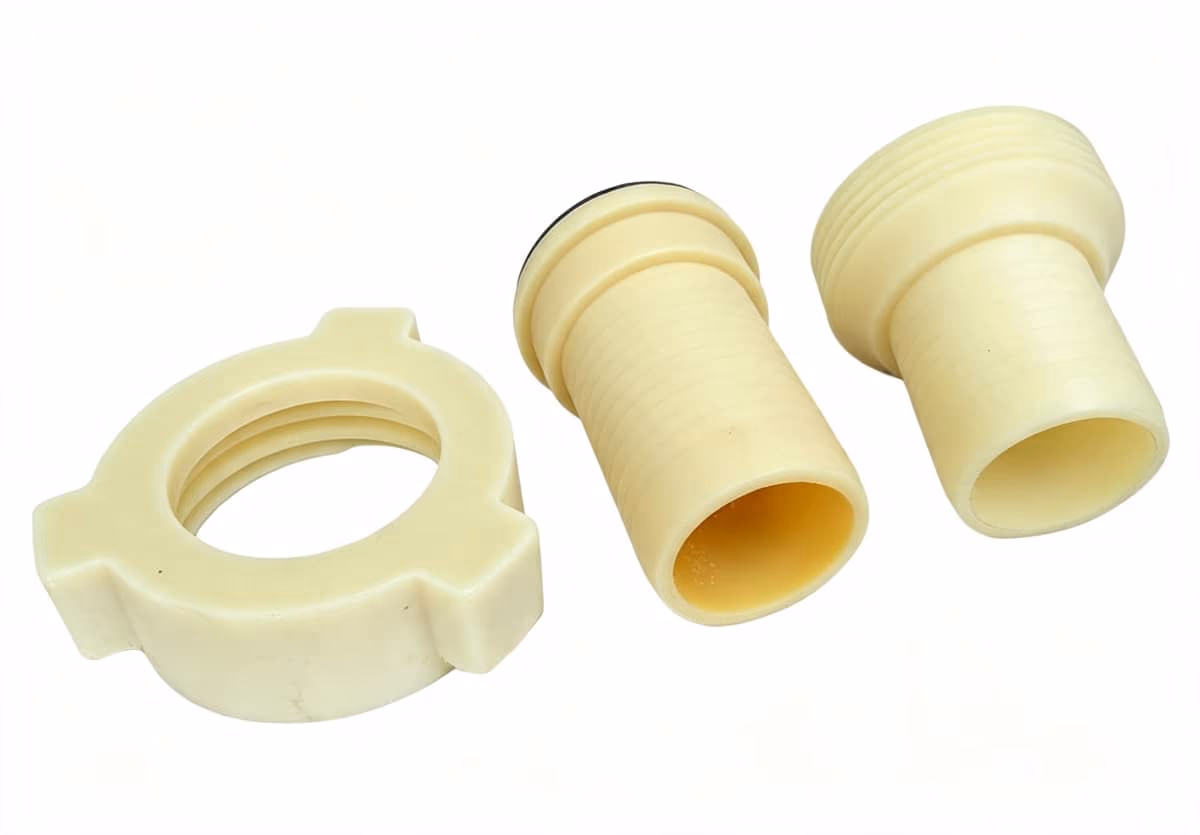

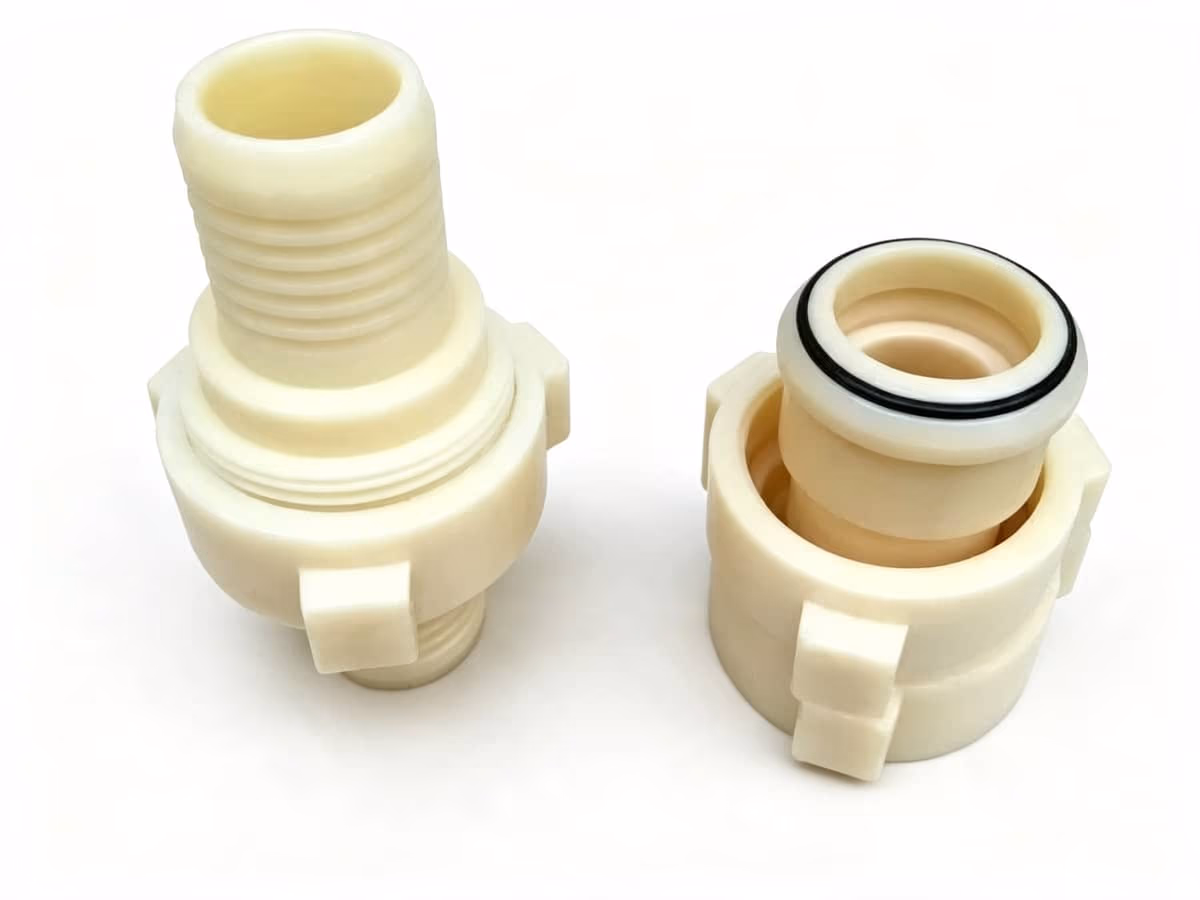

Nylon hammer union is a quick-disconnect low-pressure coupling injection-molded from glass-fiber reinforced PA66. Male/female subs, wing nut and seal ring follow metal FIG geometry for fast hose or thread make-up.
Only 1/5–1/7 the weight of steel unions, rust-free, electrically insulating and resistant to water, oil and weak acids/alkalis. Working pressure ≤1.6 MPa (230 PSI); temperature −20°C to +80°C.
For low-pressure return water, mud circulation, irrigation and chemical transfer only. Never use on high-pressure fracturing or wellhead lines. Avoid impact, strong oxidants and long UV exposure.
Specifications
| Main Material | Glass-fiber reinforced PA66 nylon |
|---|---|
| Nominal Size | 1", 2", 3", 4", 6", 8", 10", 12" |
| FIG Type | FIG100 / FIG206 / FIG602 (LP geometry) |
| Working Pressure | ≤1.6 MPa (230 PSI) |
| Working Temperature | −20°C ~ +80°C |
| Seal | NBR seal ring |
| Connection | Hose barb / thread |
Features
- Ultra-light vs steel — easy handling
- Rust-free and electrically insulating
- Fast make-up with reliable hose sealing
- Cost-effective for LP auxiliary lines
- LP only — never substitute for steel HP unions
