Swivel Elbow Series
360° swivel elbows with FIG hammer unions to relieve hose torsional stress on fracturing and cementing manifolds.
Quick answer
Forged 4130 swivel elbows with 360° rotation and FIG ends for fracturing manifolds — 2–20k PSI.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN

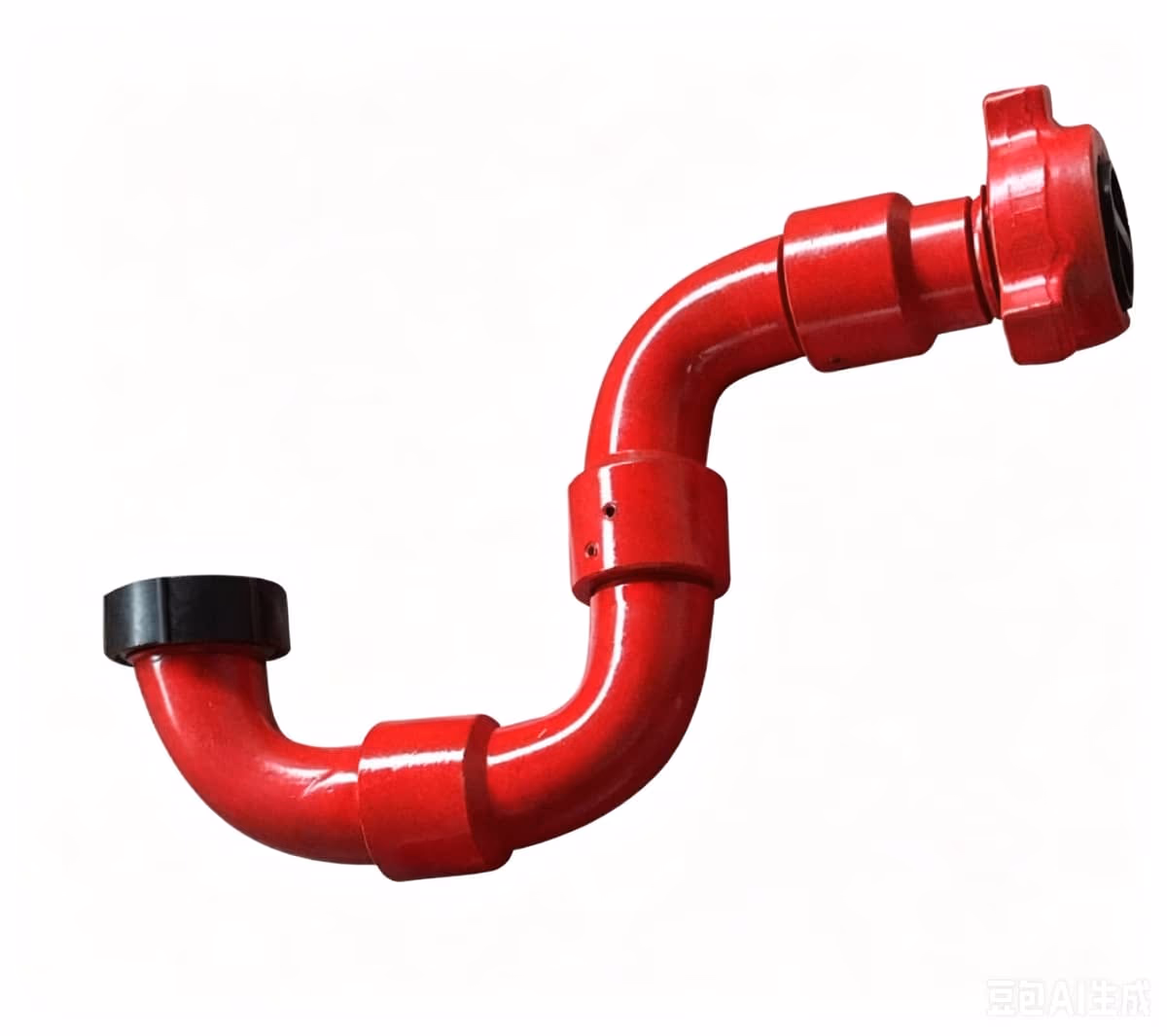

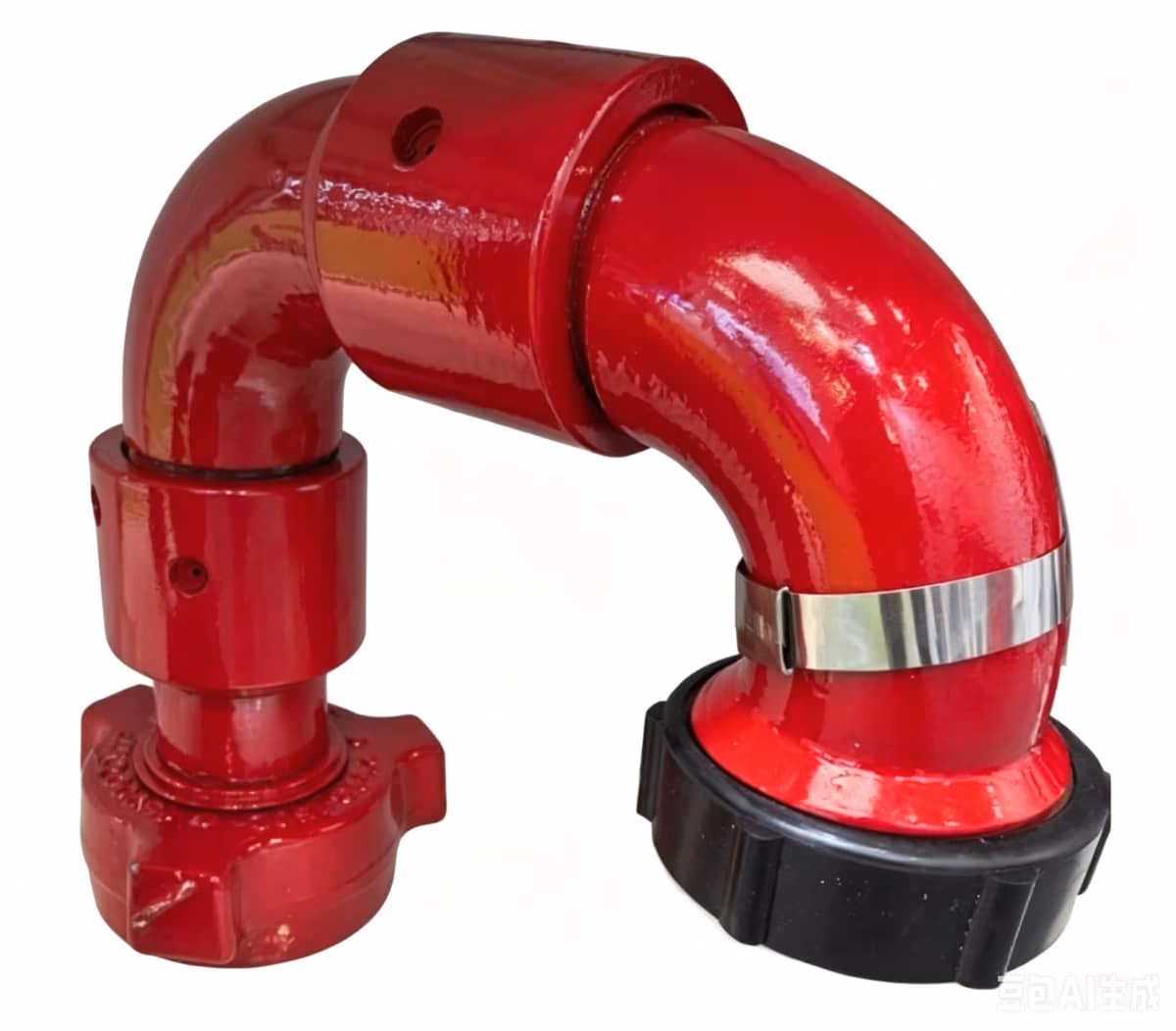

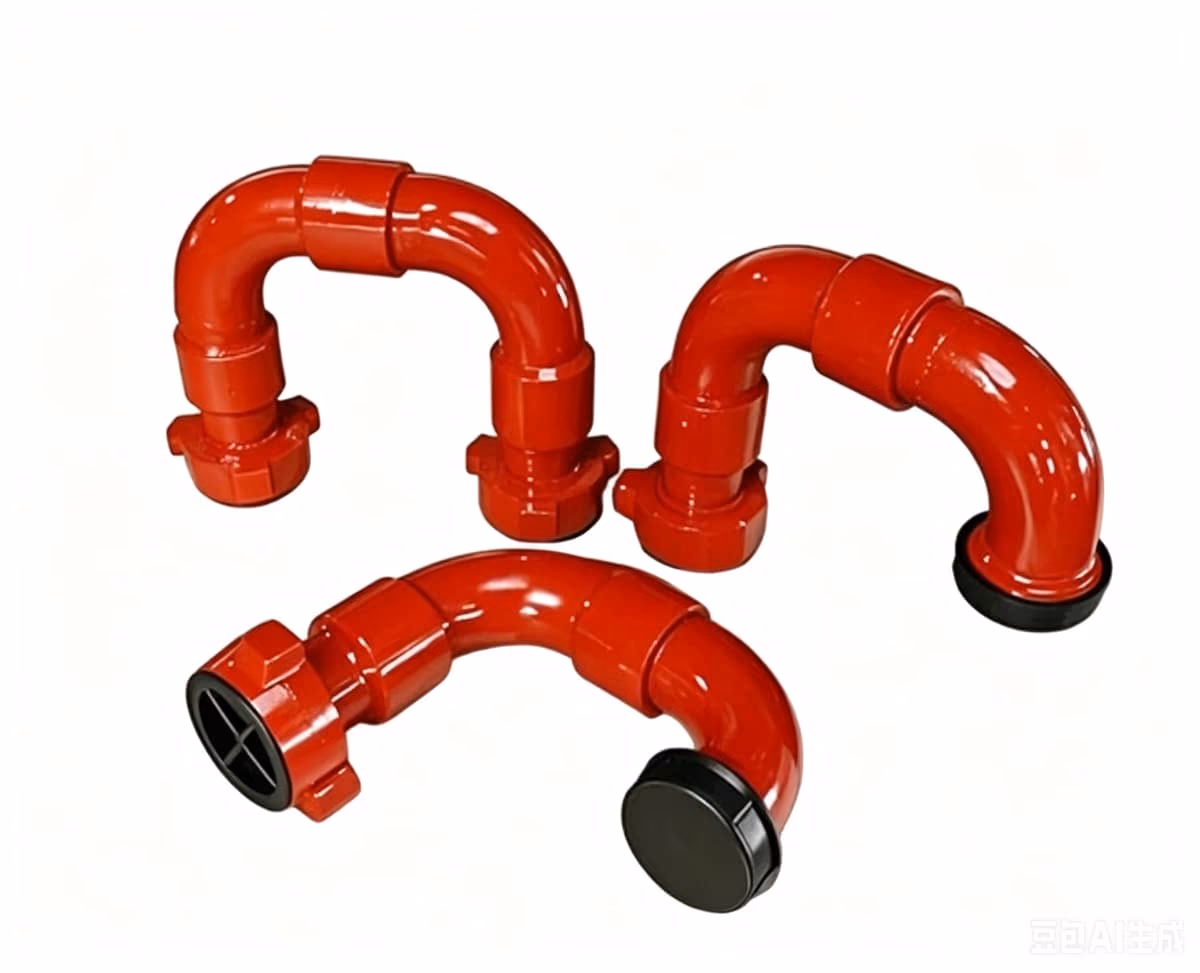

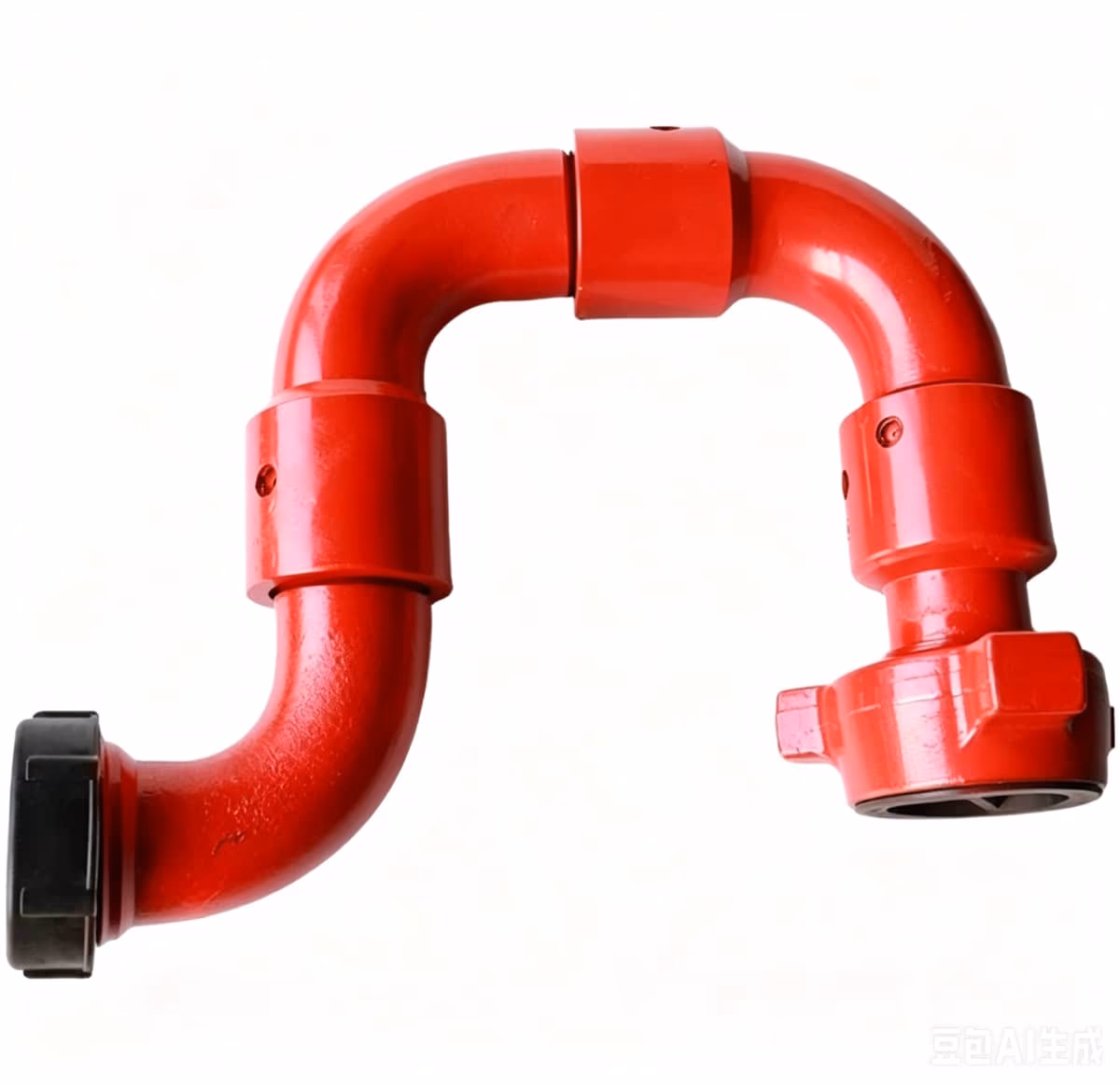

Swivel elbows incorporate rotary thrust bearings for 360° rotation that releases hose torsional stress. FIG hammer-union ends enable fast make-up. Styles include single-joint, double-joint, long-radius and short-radius; 45° and 90° angles.
Fully forged 4130 body; NBR/FKM seals; field-replaceable seal cartridge. Working pressure 2,000–20,000 PSI; sizes 1"–6"; FIG200/602/1502 and others. Temperature typically −29°C to +121°C.
Interchangeable with international FIG products. Do not exceed rated pressure; grease bearings periodically. Models include 50 FF/FM, 10 MF/MM, 20 straight, 80/100 double-joint compounds.
Specifications
| Rated Working Pressure | 2,000–20,000 PSI |
|---|---|
| Angles | 45°, 90° |
| Nominal Sizes | 1", 2", 3", 4", 6" |
| Body Material | Fully forged 4130 alloy steel |
| Seal | NBR / FKM |
| End Connection | FIG hammer union (FIG200 / 602 / 1502, etc.) |
| Temperature | −29°C ~ +121°C |
Features
- 360° rotation relieves hose twist
- Forged 4130 for HP service
- Smooth low-resistance bearing design
- Field-replaceable seal cartridge
- Single- and double-joint configurations
