Y-Type Manifold Tee
One-piece forged 4130 Y-type manifold tee for high-rate fracturing with lower pressure drop than T-tees.
Quick answer
Forged 4130 Y-type manifold tee for fracturing — lower pressure drop than T-tees, FIG or flange ends, API 6A.
Key facts
- Product type : Oilfield fitting
- Application : Fracturing / cementing / wellhead
- Country of origin : CN

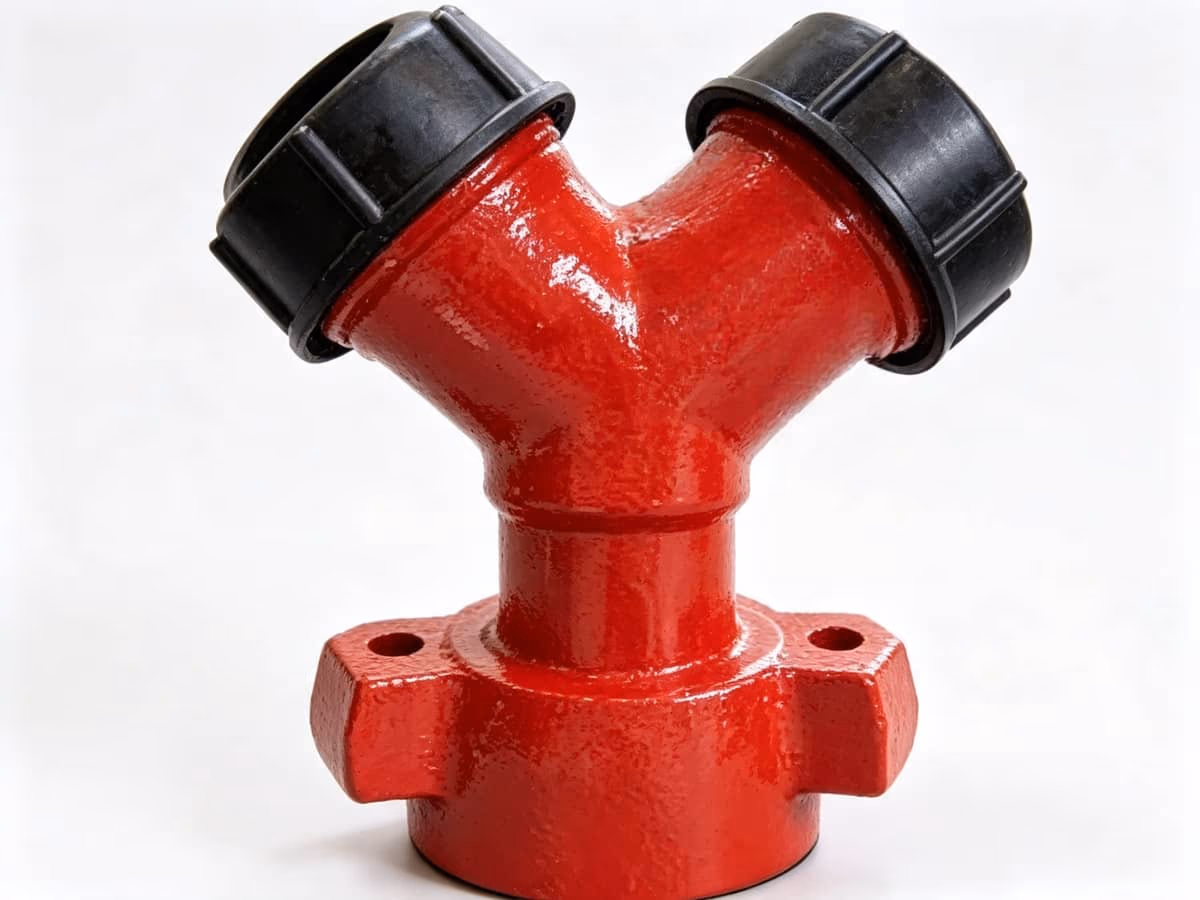

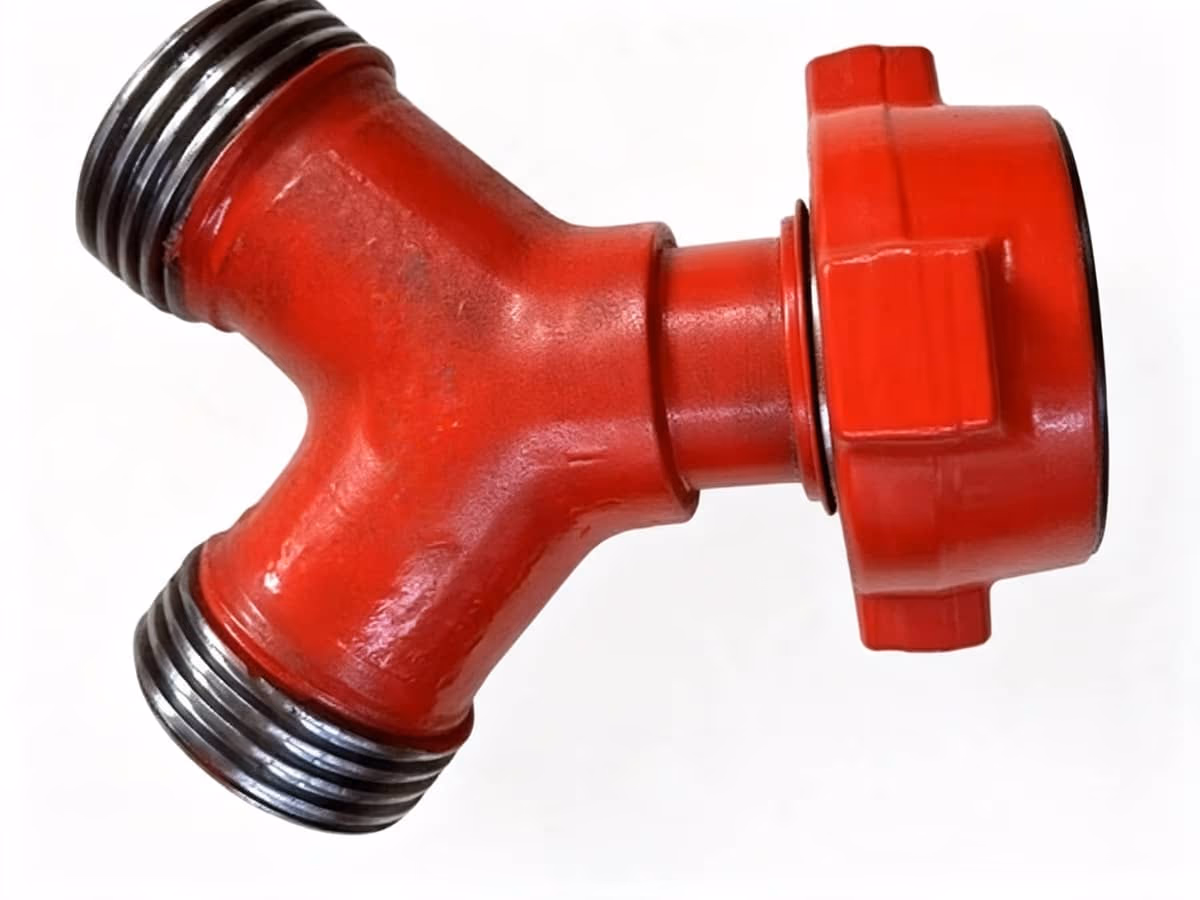

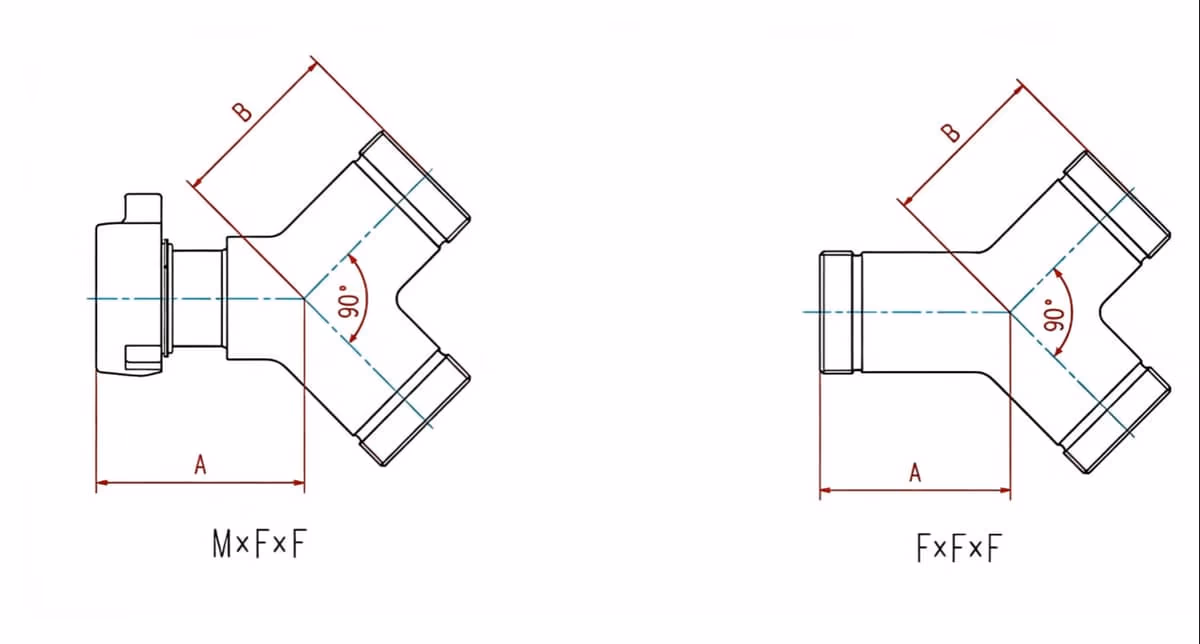

Y-type manifold tee is a key splitting and converging fitting in oilfield high-pressure manifold systems. One-piece forged from 4130 alloy steel with a Y-shaped flow path, it splits, converges and diverts high-pressure fluid with less impact and erosion than conventional T-tees.
Available with FIG hammer union or RTJ flange ends in equal-bore, reducing or angled styles. Compliant with API 6A; NACE MR0175 sour-service optional. Commonly paired with loop manifolds, plug valves, choke valves and high-pressure straight pipe.
Typical service: fracturing, cementing and well testing with sand-laden media at 5,000–20,000 PSI. Every unit is hydrostatically tested before delivery.
Specifications
| Body Material | 4130 alloy steel, one-piece forged |
|---|---|
| End Connection | FIG hammer union / RTJ flange |
| Standard | API 6A; NACE MR0175 optional |
| Nominal Bore | 2", 3", 4" |
| Pressure Rating | 5,000 / 10,000 / 15,000 / 20,000 PSI |
| Union Sizes | FIG1002 / FIG1502 / FIG2002 |
| Service Medium | Fracturing fluid, sand-laden fluid, cement slurry, mud, gas |
Features
- Y-shaped flow path reduces erosion, vortex and pressure drop
- 4130 one-piece forging for high-pressure pulsation
- Hammer union or flange ends for field or fixed manifolds
- Equal-bore, reducing and angled styles available
- NACE sour-service option; 100% hydrostatic test
